Title:       Masked Label Control
Author:      Eric Woodruff
Email:       Eric@EWoodruff.us
Environment: Visual Studio .NET, Windows Forms, C#, VB.NET
Keywords:    label, mask, MaskedTextBox, MaskedTextProvider
Level:       Intermediate
Description: A derived label control that can format its text using the same
             mask characters as the MaskedTextBox control.
Section      C# Windows Forms
SubSection   C# Controls

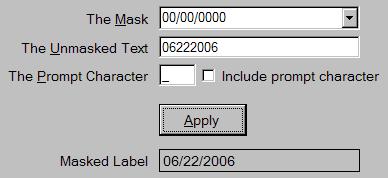

Masked Label Example

Introduction

In .NET 2.0, there is a new MaskedTextBox control that allows you to specify a mask that is used to restrict the input characters and make the entered text conform to a specific format. One of the features of the control is that you can retrieve the text from it excluding the literal characters when the TextMaskFormat property is set to ExcludePromptAndLiterals. The problem with the unmasked text is that if you want to display it outside of the text box control, you need to manually put the mask characters back into it. You could just use a disabled MaskedTextBox control but the text is usually harder to read. You could make it read-only but the text box can still be focused. It also does not solve the problem if you want to display the value as part of a larger string or in a message box. As such, I created the MaskedLabel control.

The control is just a simple Label control with a few extra properties that let you specify the mask to apply when you set its text. In addition, it has a static overloaded Format method that you can use to format text with a mask so that it can be used in other ways without the need of an actual control instance (i.e. format and display the text in a message box). The supplied demo contains the assembly, a help file, and a demo application. See the help file for details on installing the assembly in the Visual Studio .NET tool box. You can also extract the MaskedLabel.cs source file for use in your own projects or control libraries.

Using the Assembly in your Projects

The classes can be found in the assembly EWSoftware.MaskedLabelControl.dll. In order to use the classes, add a reference to it in your project. The help file contains details on how to do this if you need it. In the code modules that use classes from the EWSoftware.MaskedLabelControl namespace, you will have to add a using statement (Imports in VB.NET) for the EWSoftware.MaskedLabelControl namespace.

To use the MaskedLabel control, simply drag it from the toolbox and drop it on your form. The following additional properties are available:

Once the mask is defined, setting the control's Text property will get it to show the text with the mask applied. Reading the Text property returns the formatted text. The following read-only properties can provide some information about the formatting process should you need it:

The static Format method allows you to format masked text outside of the control. There are four overloads for the method. The simplest one takes the format string and the unmasked text. Again, the mask can be anything that the MaskedTextBox control supports. The other three take additional parameters for the prompt character, culture, and result hint information.

// Format a value
string formattedText = MaskedLabel.Format("000-00-0000",
    "123121234");

// Show a prompt character in missing positions
string withPrompt = MaskedLabel.Format("000-00-0000",
    "12312", '_');

// Show a currency value using the French culture
string withCulture = MaskedLabel.Format("$0.00",
    "123", '\x0', new CultureInfo("fr-FR"));

// Format text and get the results
MaskedTextResultHint hint;
int pos;

string badText = MaskedLabel.Format("00/00", "123456",
    '\x0', null, out hint, out pos);

How It Works

The MaskedTextBox control utilizes the MaskedTextProvider to handle all of the format related properties and tasks. This makes it quite simple to utilize the same formatting in other controls such as the MaskedLabel control. To use it, you construct a new instance specifying the mask and an optional culture. Other properties can be used to set the prompt character and other such options. To obtain a formatted text value, you call its Set method. This formats the text and returns result information such as whether or not the text was valid for the mask. Using the masked text provider's ToString method returns the formatted text. Below is the MaskedLabel control's Format method that illustrates this process.
public static string Format(string mask, string text,
  char promptChar, CultureInfo culture,
  out MaskedTextResultHint hint, out int hintPosition)
{
    if(text == null)
        text = String.Empty;

    if(culture == null)
        culture = CultureInfo.CurrentCulture;

    MaskedTextProvider provider =
        new MaskedTextProvider(mask, culture);

    // Set the prompt character options
    if(promptChar != '\x0')
    {
        provider.PromptChar = promptChar;
        provider.IncludePrompt = true;
    }

    // Format and return the string
    provider.Set(text, out hintPosition, out hint);

    // Positive hint results are successful
    if(hint > 0)
        return provider.ToString();

    // Return the text as-is if it didn't fit the mask
    return text;
}

Known Limitation

I have found one limitation with the MaskedTextProvider. It always formats the text from left to right filling in positions as it goes. As such, if the mask contains optional characters anywhere but at the end of the mask, you generally do not end up with the formatted value that you would expect. This is most easily shown with a format string such as "990.00". If you specify the text "123", you end up with "123." rather than "1.23". As such, the masked text provider works best when there are no optional characters or where they only appear at the end of the mask.

Revision History

06/26/2006   Initial release
